螺旋泵浦-JN-TO
螺旋泵浦JN-TO型性能規格

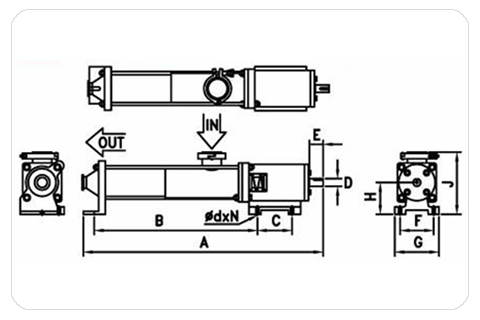

Unit:mm
| Model | A | B | C | D | E | F | G | H | J | ØdxN | IN | OUT | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TO-150 | 690 | 440 | 112 | Ø20xW7 | 45 | 90 | 130 | 80 | 150 | 11x4 | 3" | 1½" | 19 |
| TO-200 | 832 | 542 | 114 | Ø25xW7 | 45 | 110 | 145 | 105 | 186 | 11x4 | 2½" | 1½" | 30 |
| TO-300 | 992 | 693 | 150 | Ø30xW10 | 60 | 150 | 180 | 125 | 217 | 11x4 | 3" | 2½" | 50 |
| TO-400 | 1160 | 790 | 176 | Ø35xW10 | 65 | 180 | 220 | 150 | 260 | 13x4 | 4" | 3" | 74 |
| TO-500 | 1350 | 940 | 196 | Ø40xW12 | 75 | 220 | 260 | 160 | 293 | 13x4 | 4" | 4" | 99 |
