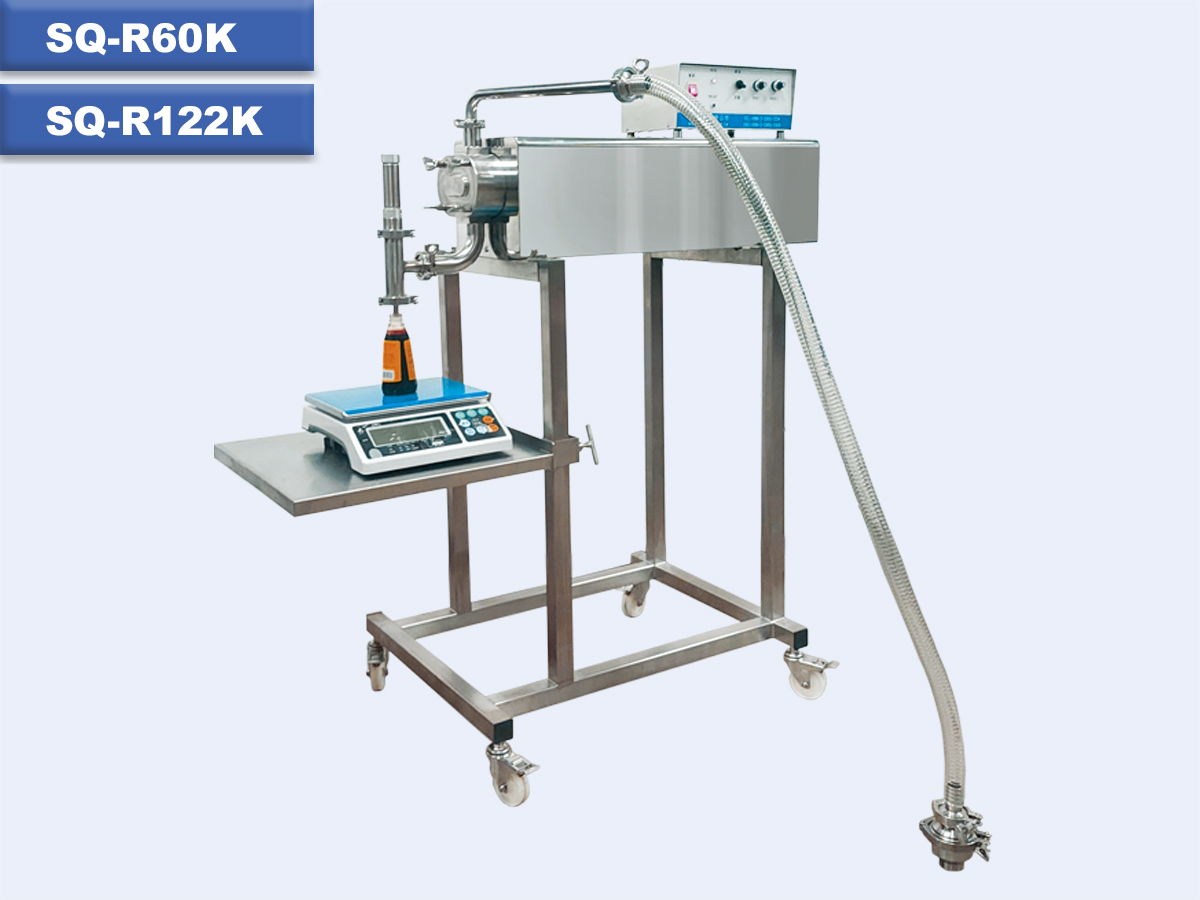

Weight Filling Machine for Liquid SQ-R60H
商品示意圖

Model: SQ-R60H

Model: SQ-R122H

APPLICATIONS:
For filling fluid liquid, medium viscosity/density liquid, high viscosity/density liquid and liquid containing granules.

FEATURES:

  • Quantify by weight
  • Types of Pump: Rotary Lobe Pump for SQ-R60H / SQ-R122H
  • SQ-R60H equipped with Rotary lobe pump JN-1-C
  • SQ-R122H eqeuipped with Rotary lobe pump JN-2-C
  • Filling range: 80g~5000g (including weight of container)
  • Filling accuracy: 1% . Also depends on specific gravity, concentration and evenness of products and could be customized
  • Liquid might contain max. 10mm granule (SQ-R60H)
  • Liquid might contain max. 20mm granule (SQ-R122H)
  • Two-stage weighing scale, low-speed filling follows hi-speed filling for superior accuracy
  • Improved volume filling restrictions
  • Stainless steel material, allowing for health rate construction
  • No dripping or leaking during filling
  • Resists high temperature to 90°C
  • Hopper: 50Liter, material: SS#304
  • Dimendions: L110cmXW60cmXH95cm
  • Bench top type dimensions : L100cmXW60cmXH70cm
  • Scale dimensions: L34cmXW30cmXH11cm
  • Dimensions: L137cmXW60cmXH150cm
  • Power: 500W / 220V,50/60HZ,1Phase
  • Air compressor: 2HP (prepared by user)
