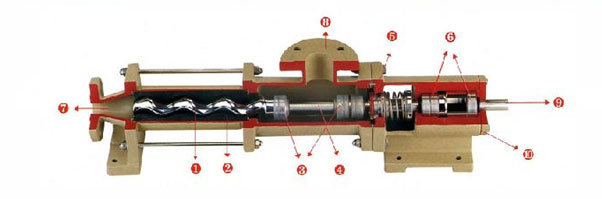

MONO SPIRAL PUMP JN-TOA TYPE INTERIOR WEAVE
| NO | Name | Materials | NO | Name | Materials |
| 1 | Rotor | SUS #304 | 6 | Bearing | SUJ2 |
| 2 | Stator | SILICONE, VITON, NBR | 7 | Outlet | SUS #304, FC20 |
| 3 | Connector | SUS #304 | 8 | Inlet | SUS #304, FC20 |
| 4 | Connect Rod | SUS #304 | 9 | Shafting | SUS #304 |
| 5 | Sealing | Precision Ceramic | 10 | Bearing Seat | FC20 |
 | - Taiwan Patent No:105163, 111543, 119310. U.S.A. Patent No:5562360, 5685340. Germany Patent No:29605905.6

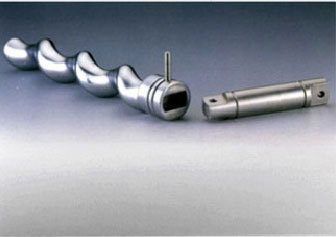

- Cylinder type of shaft connection,free of risks of broken pins.
- sectional universal joint allow better flexibiliey.
- Precision ceramic used for shaft seal.
- Stainless steel material,allowing health rated.
- Purging with water,easy disassembly for flushing.
|
